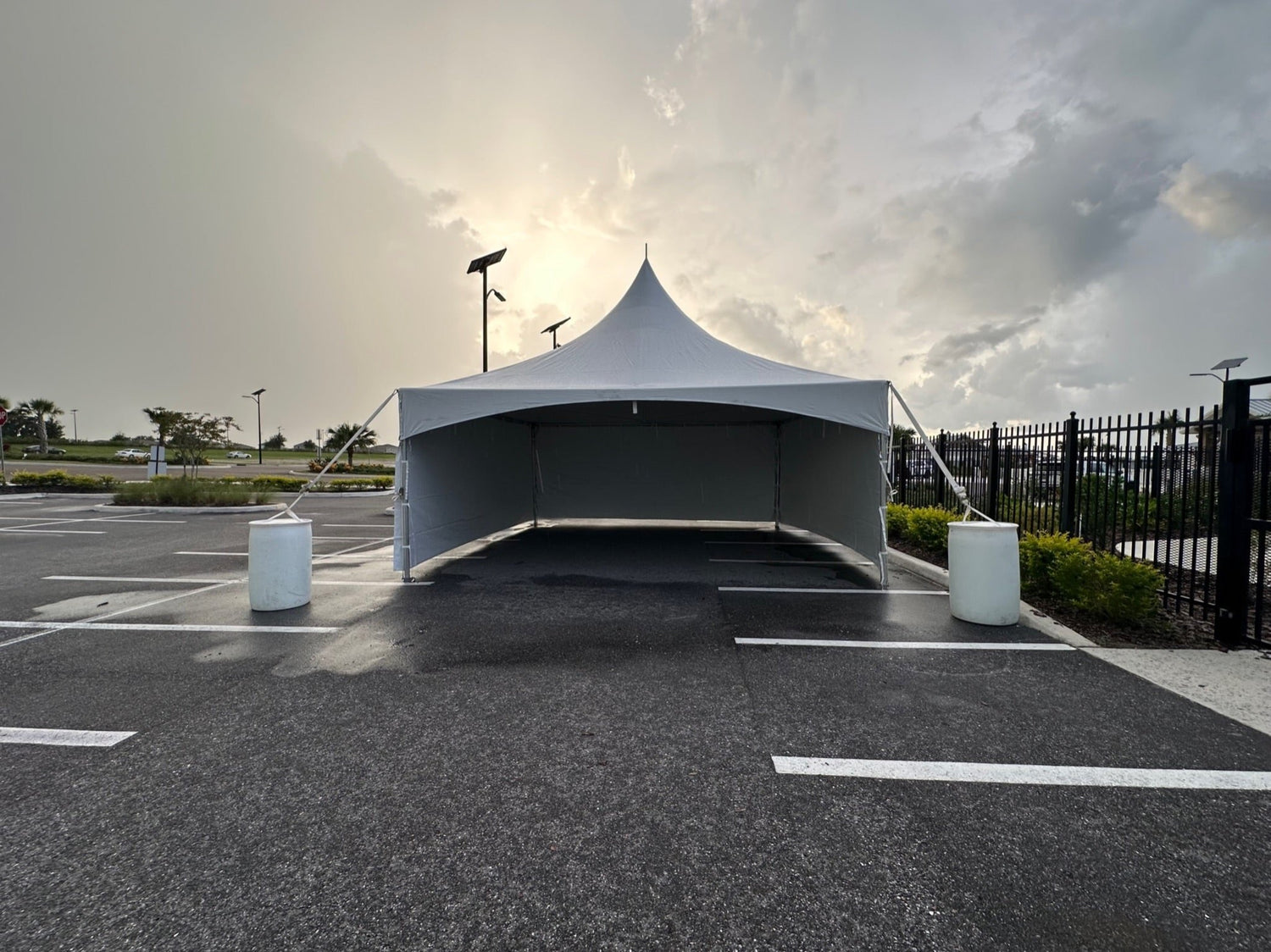

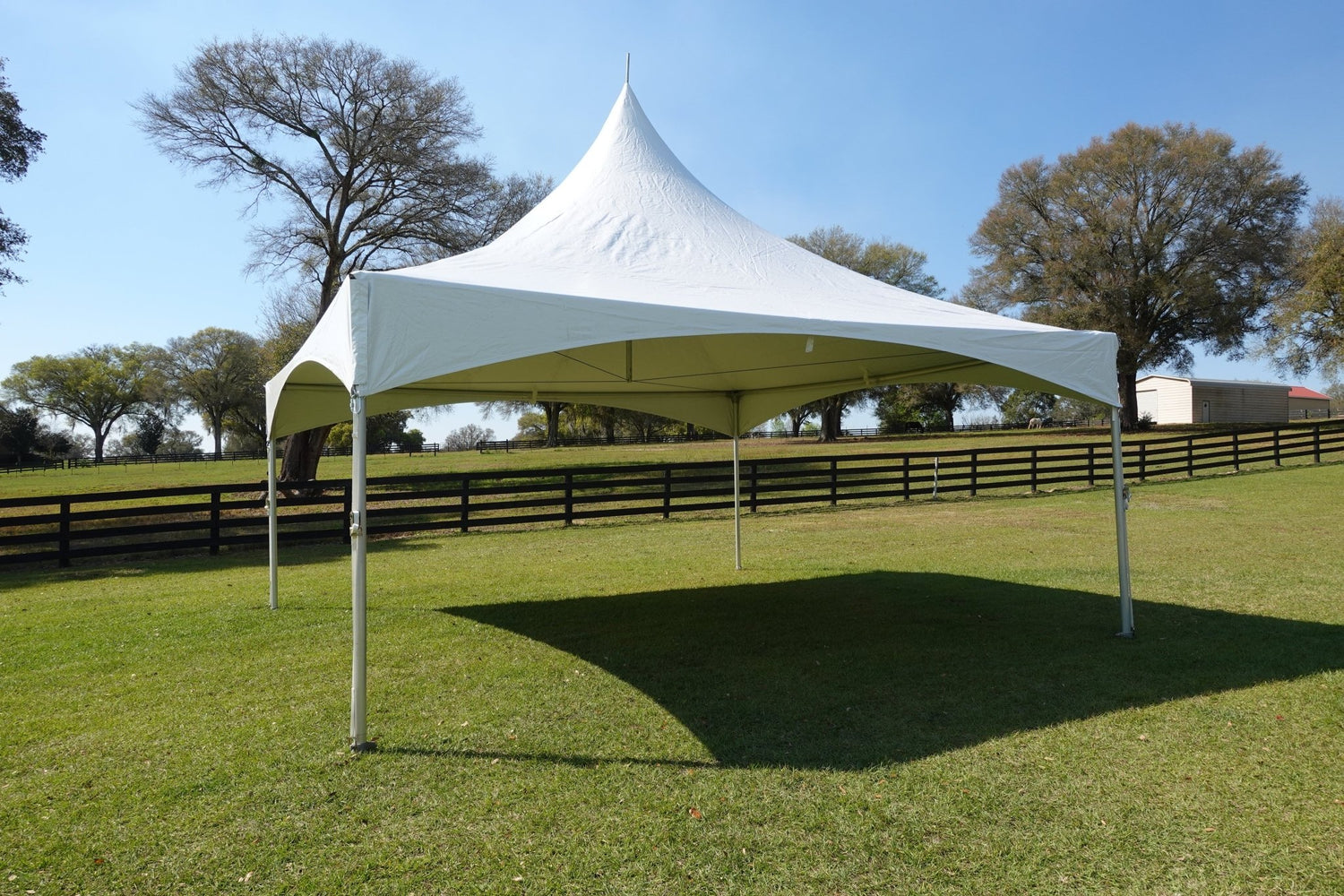

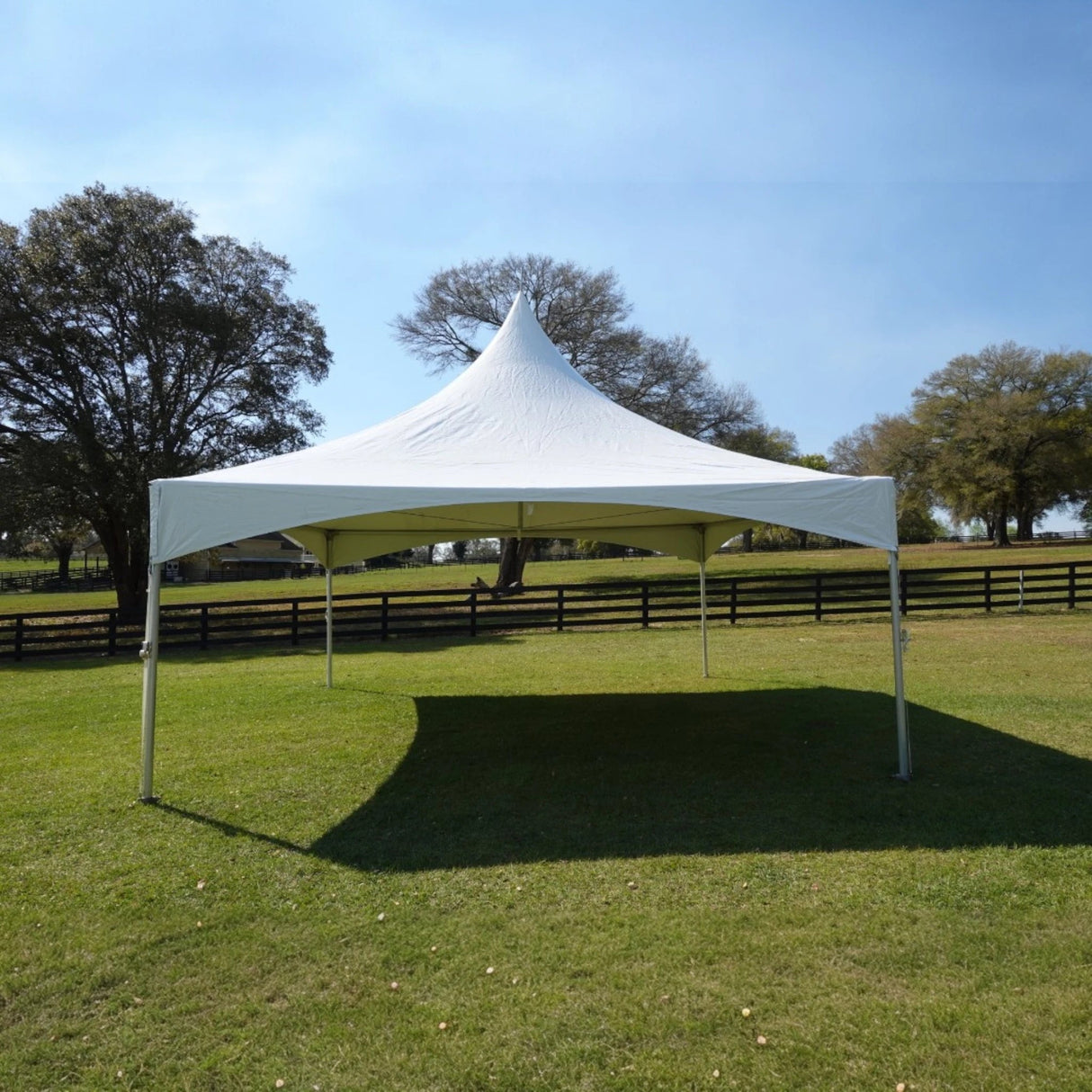

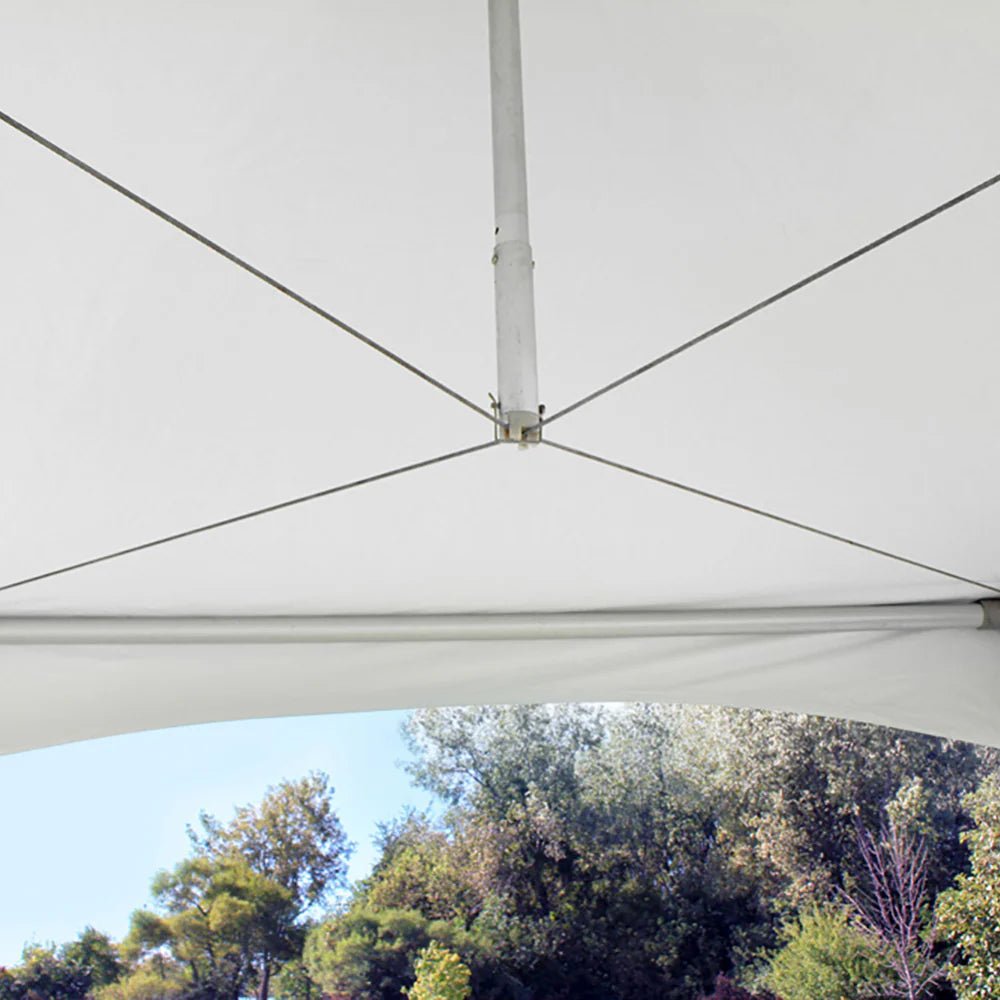

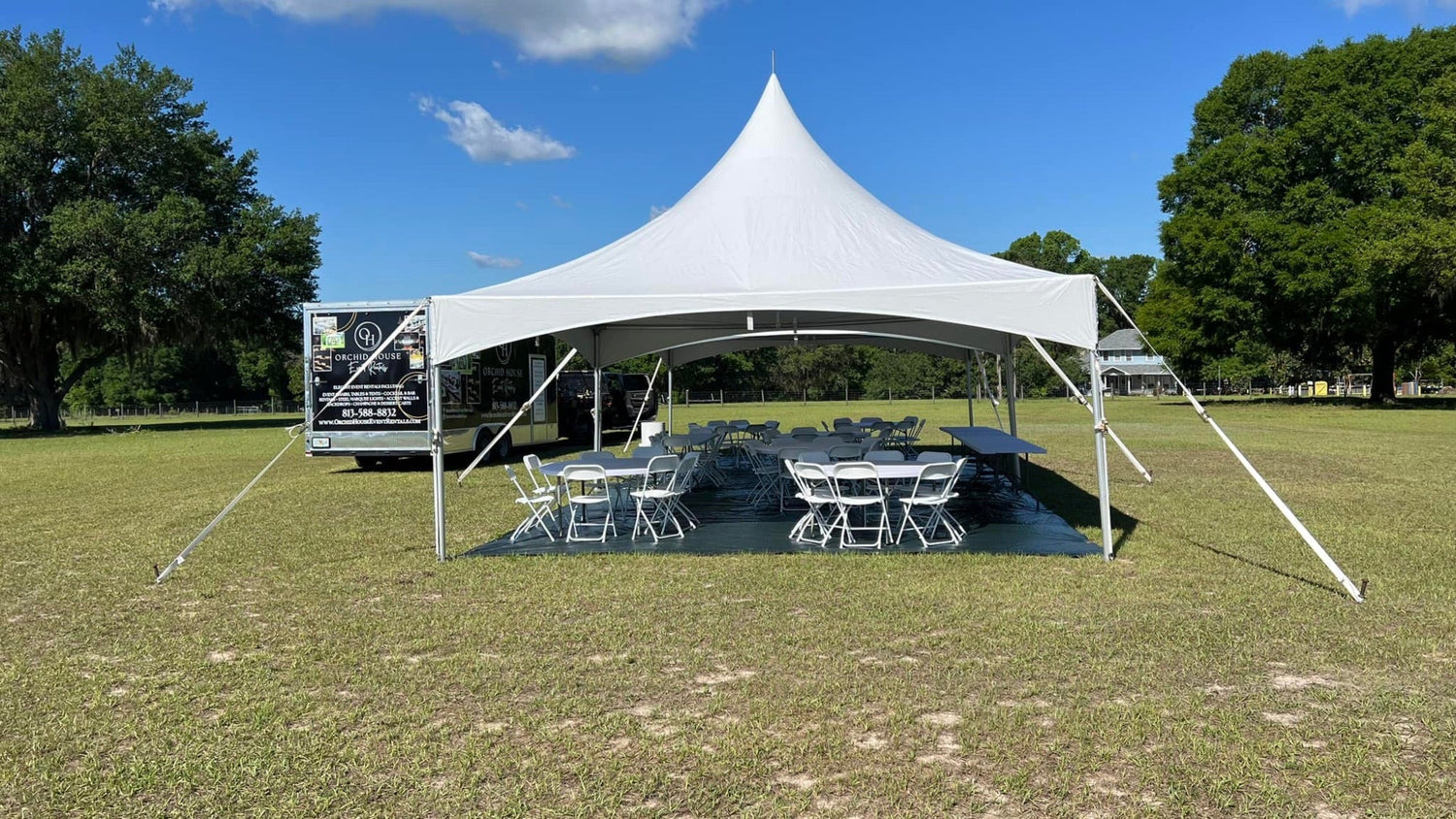

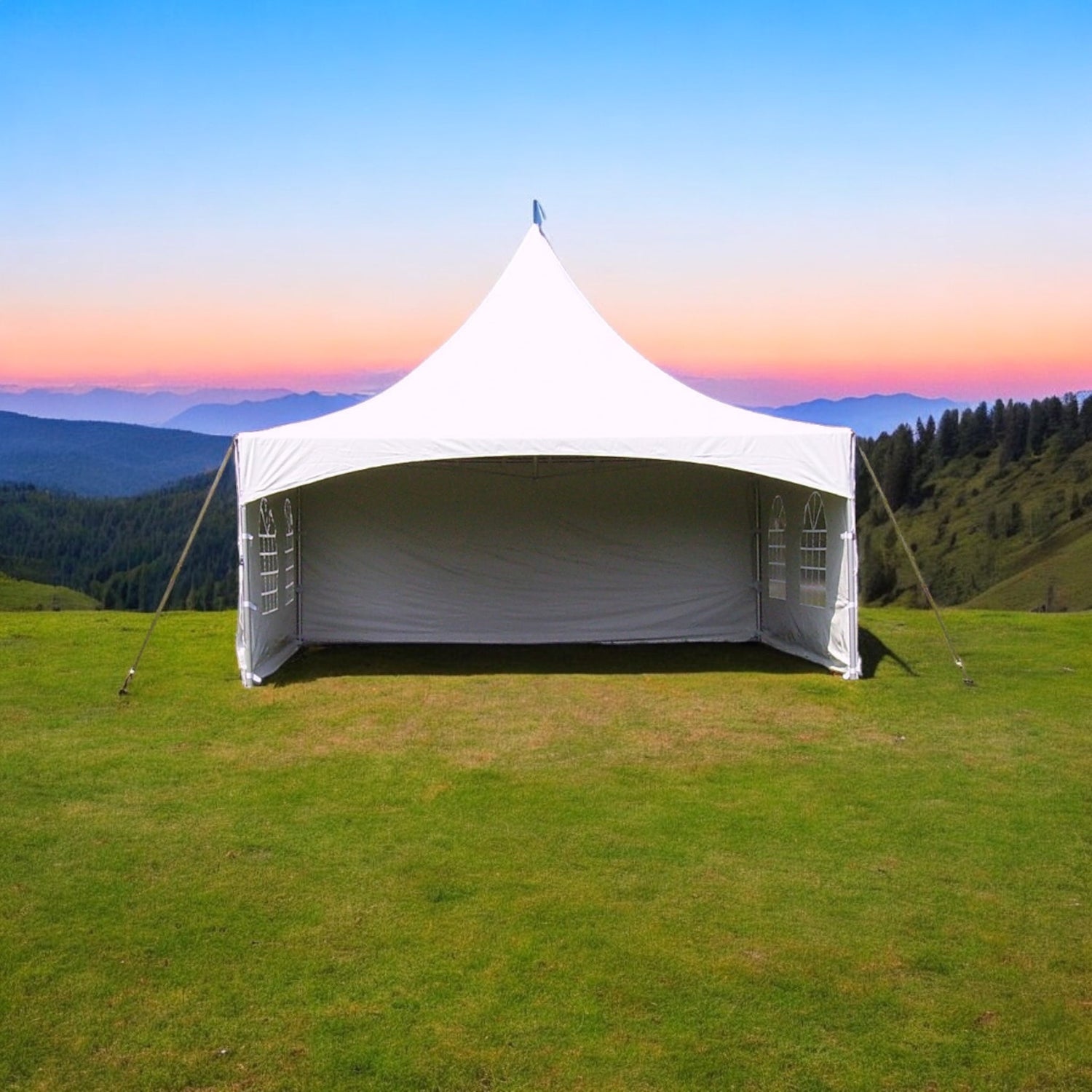

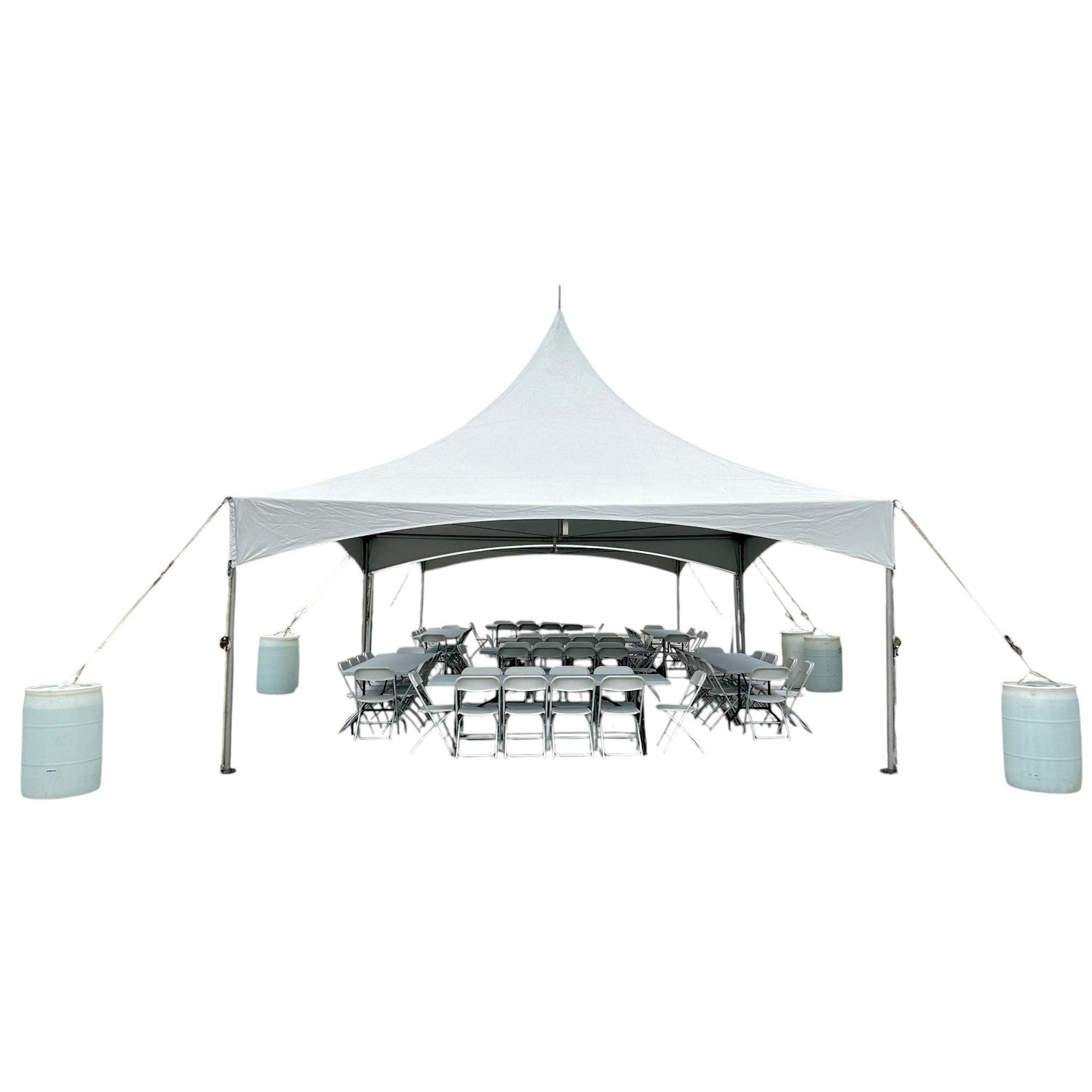

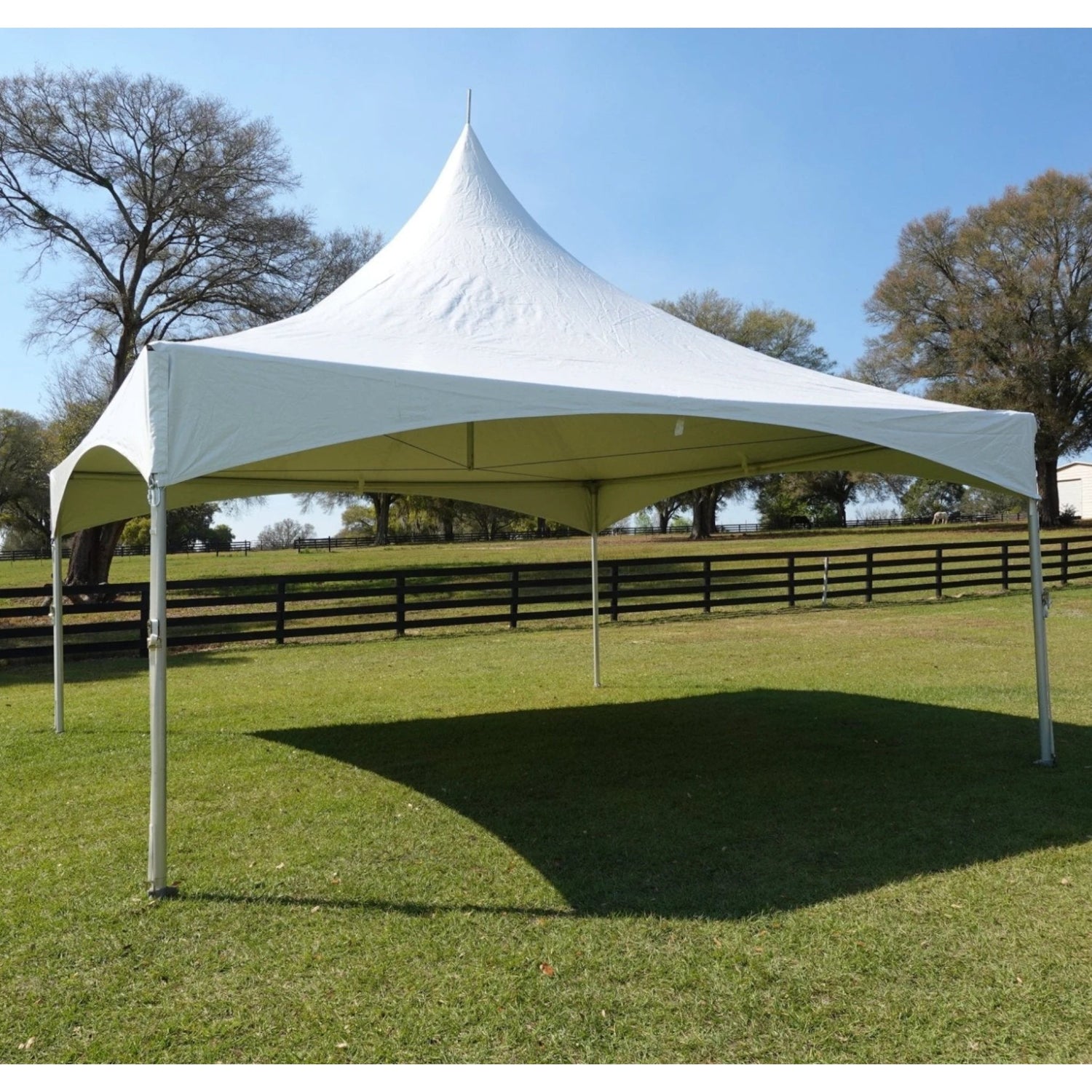

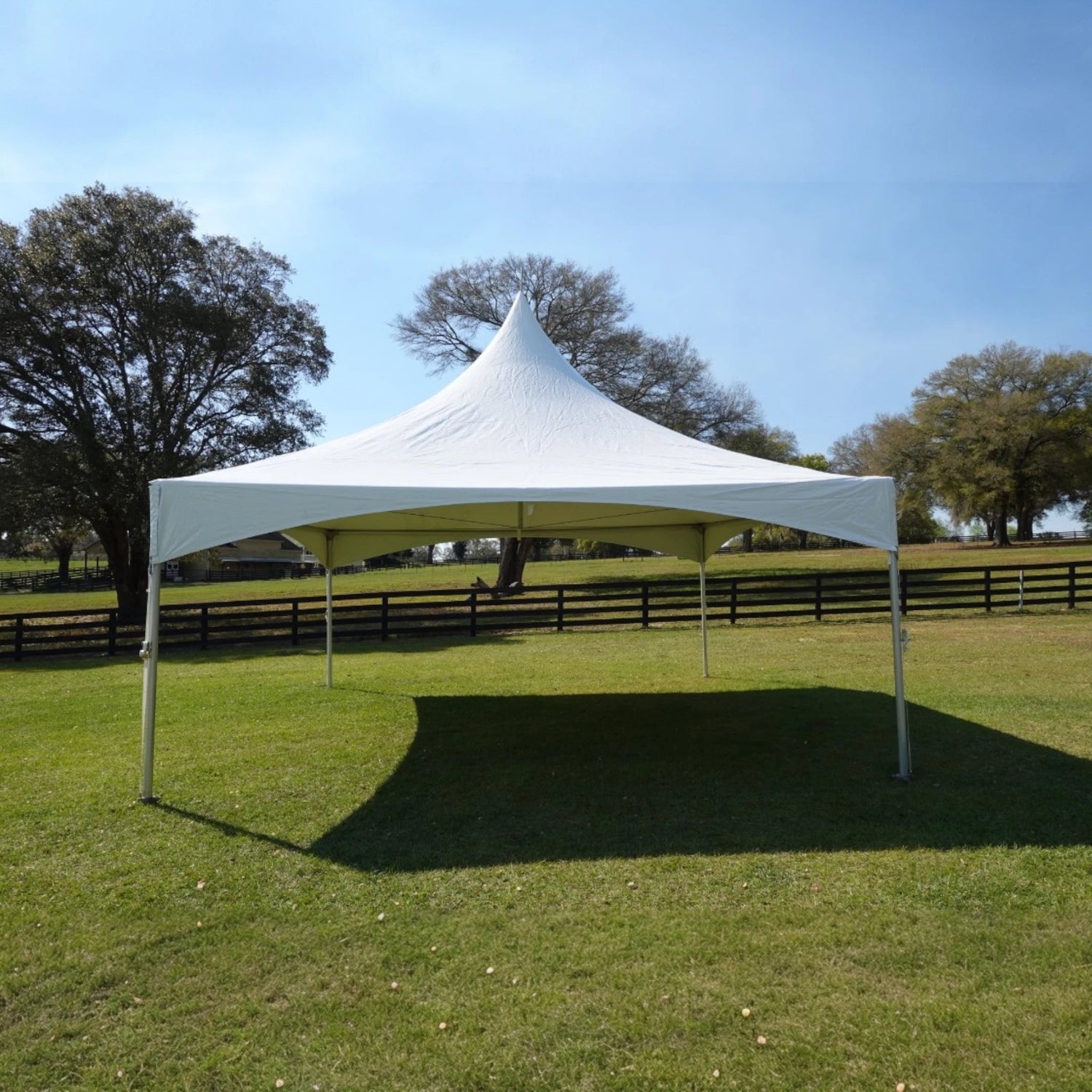

Our 20ft x 20ft Pinnacle High Peak Frame tents are designed with a high peak tube supported by cross cables extending from each corner tube, maximizing the usable space underneath while at the same time eliminating the need for interior frames or support poles. The simple design allows for easy transportation, storage, and installation involving only two people due to the reduced amount of hardware in comparison to other frame or pole tents.
Width |
20ft |
Length |
20ft |
Area |
400ft |
Eave Height |
8ft |
Overall Height |
16' 9" |
Pitch |
8' 9" |
Complete Weight |
326lbs |
Type |
Cross Cable |
Center Pole |
No |
Style/Shape |
High Peak |
Expandable |
No |
Fabric Material |
Laminated PVC Polyester |
Fabric Material Weight |
16-17oz. / yd2 / 580 gsm |
Water Repellency |
Waterproof |
Flame Resistant |
Yes, Pass NFPA-701 & CPAI-84 |
UV Resistant |
Yes, Pass 1000 hours UV test |
Mold and Mildew Resistant |
Yes, Pass 28-day no fungi growth |

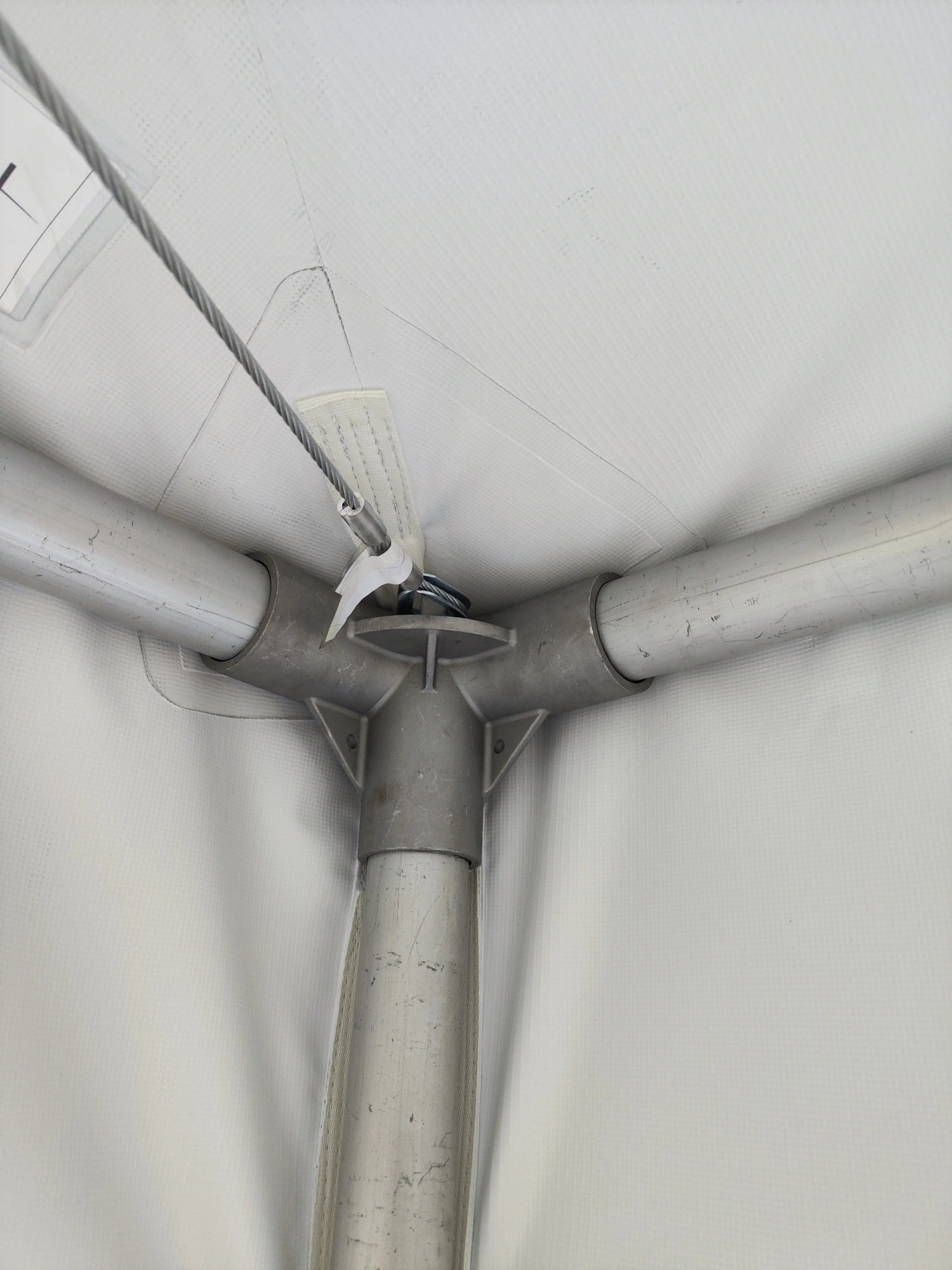

Frame / Pole Material |
Aluminum 6061-T6 |
Longest Component |
Long 9'3" / 2.8m, φ2.5” / 63.5mm and Wall thickness 0.128” / 3.3mm |
Persons required for setup |
2-3 |
Occupancy |

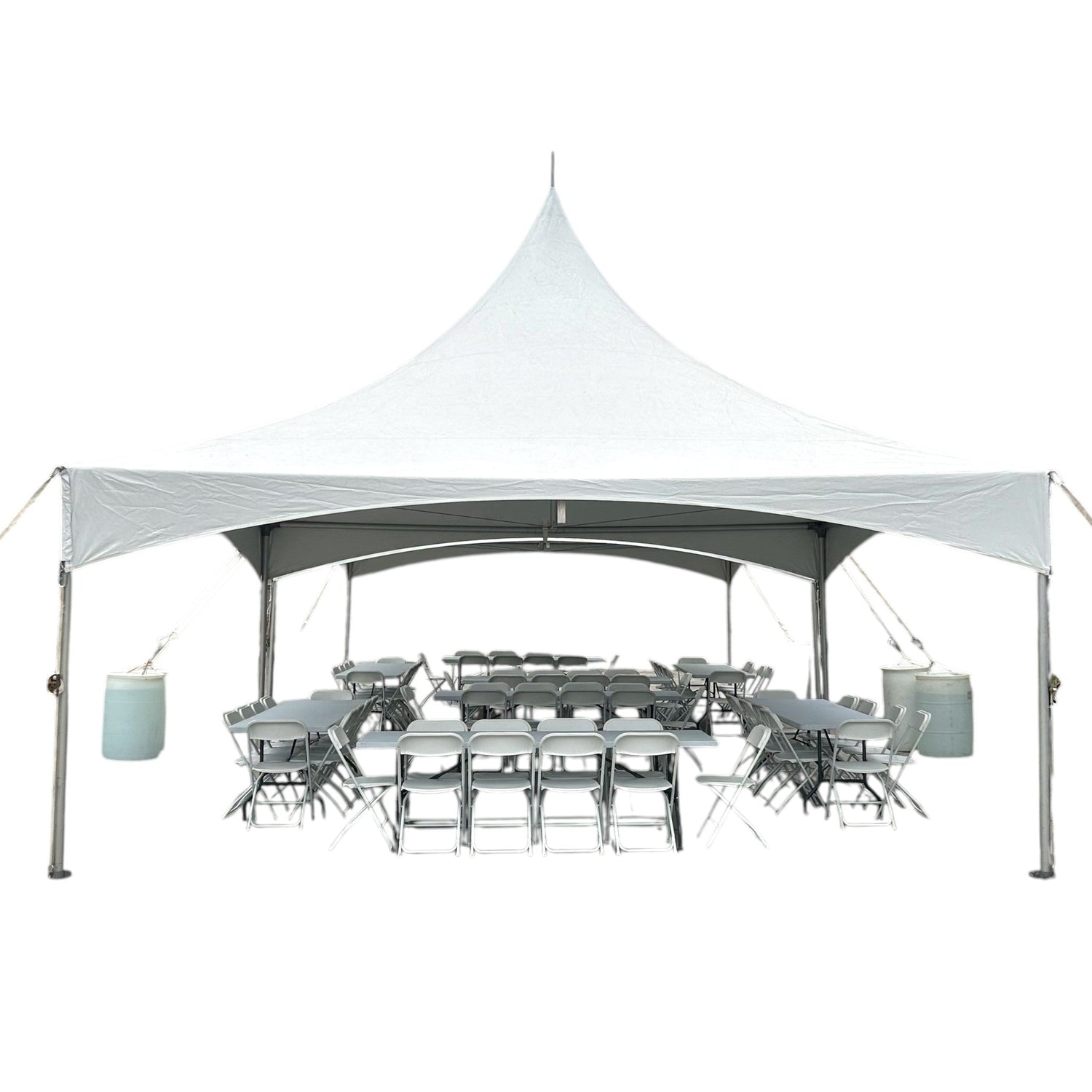

40 Sit Down Dinner - 67 Cathedral Seating |

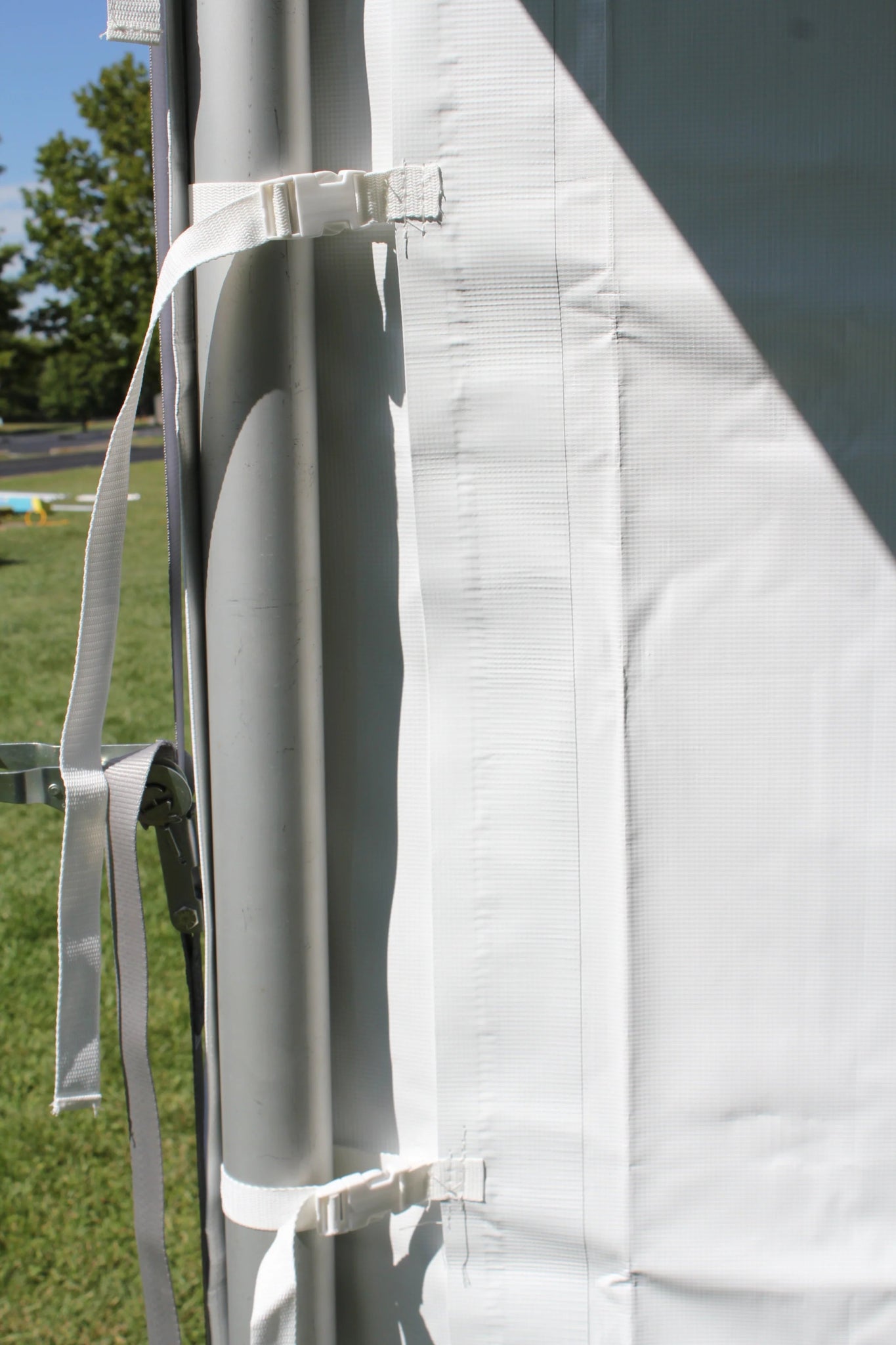

Sidewall Option? |
Yes, purchased separately |
